Compact Mini skid steer loader mini articulated wheel loader 25hp Japan engine Diesel

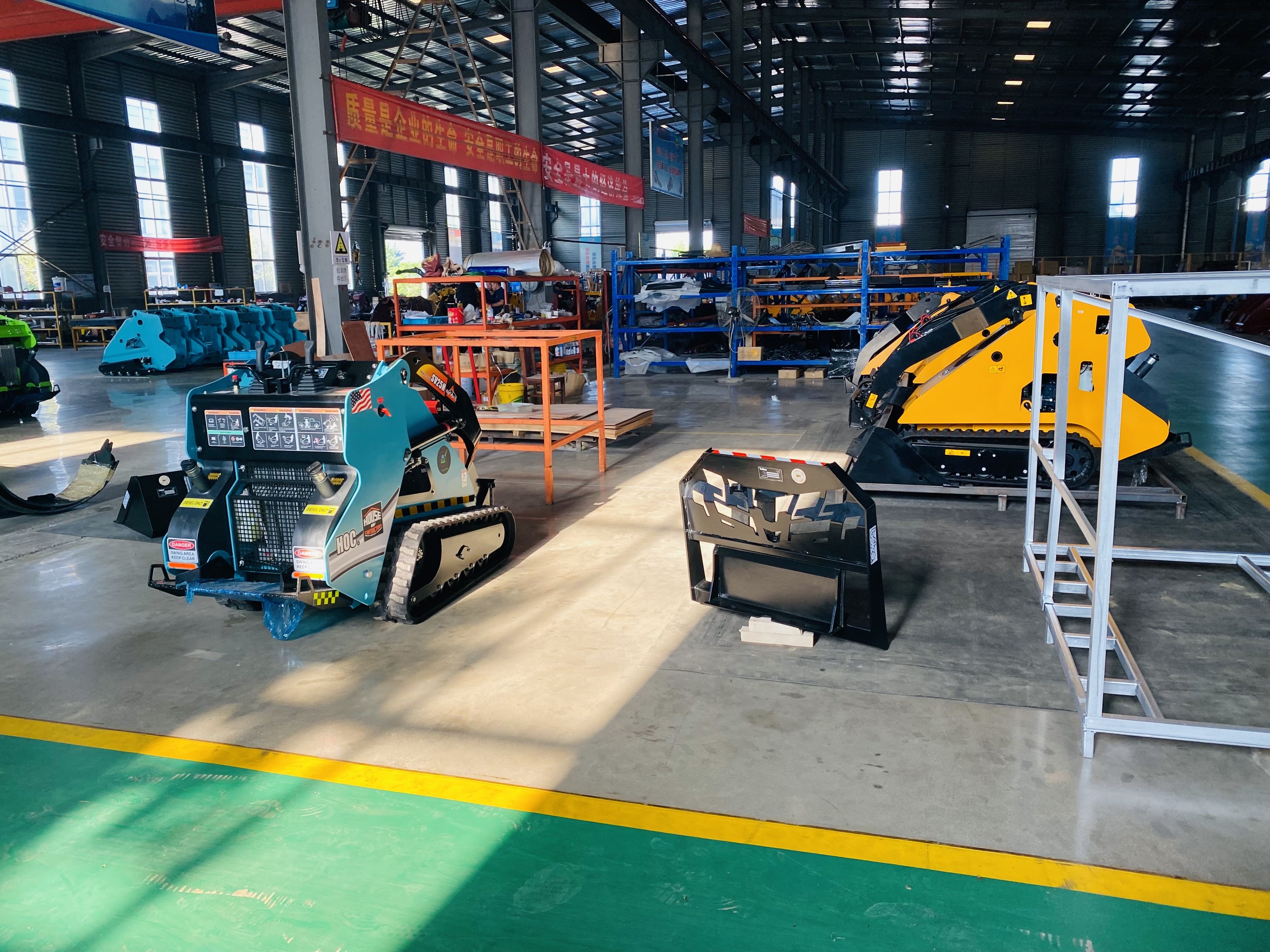

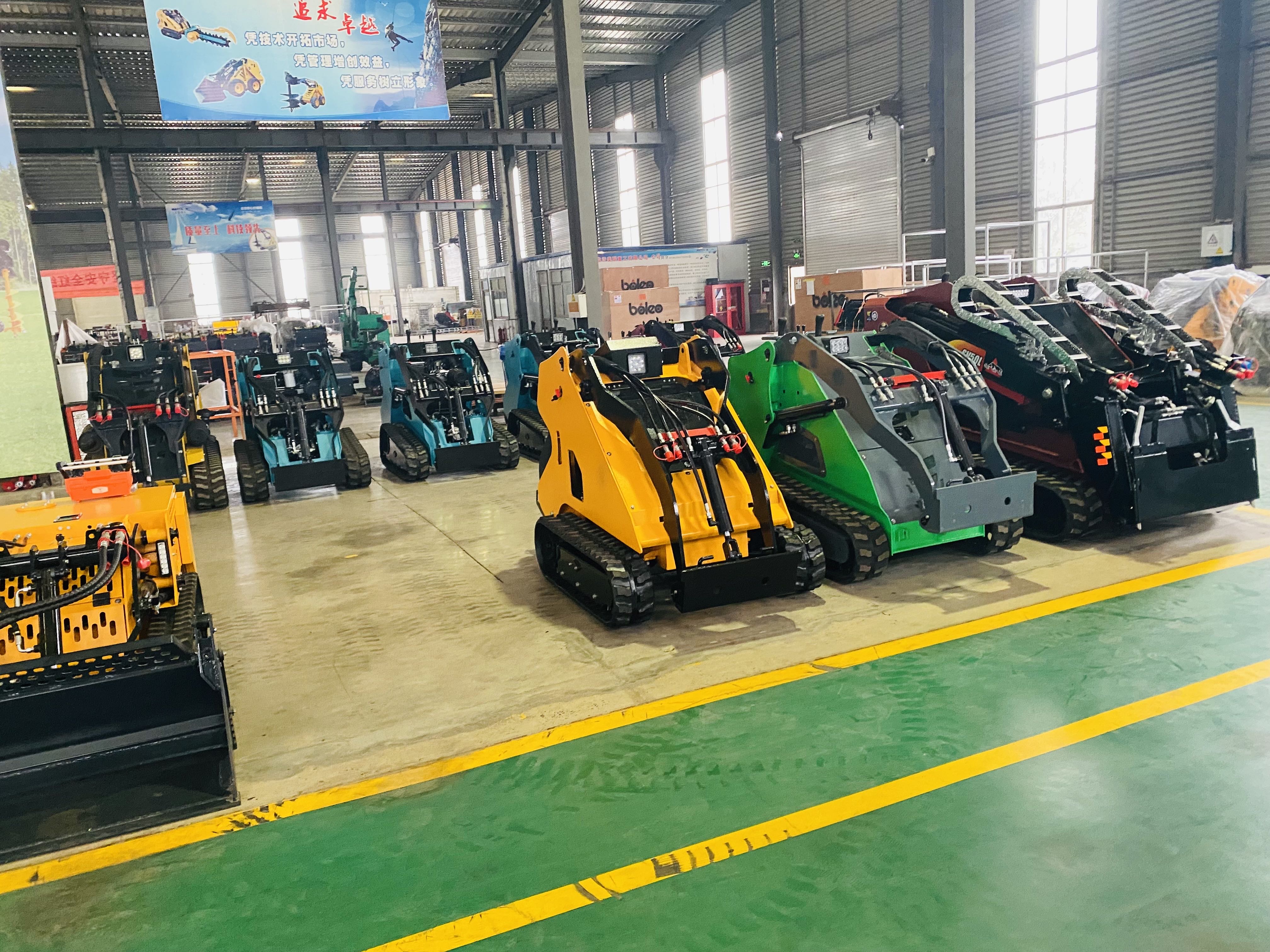

Factory showing
1: Specially customized main valve, generation combination, diversion function, boom floating function, mechanical operation is reliable, easy to repair and maintain.
2: Using the American PERMCO high-pressure gear pump, the flow can be combined and divided through the special main valve, and the system pressure is 21Mpa.
3: The US DANFOSS low-speed but torque wheel drive motor is adopted to strengthen the self-rescue function of the machine in muddy working conditions.

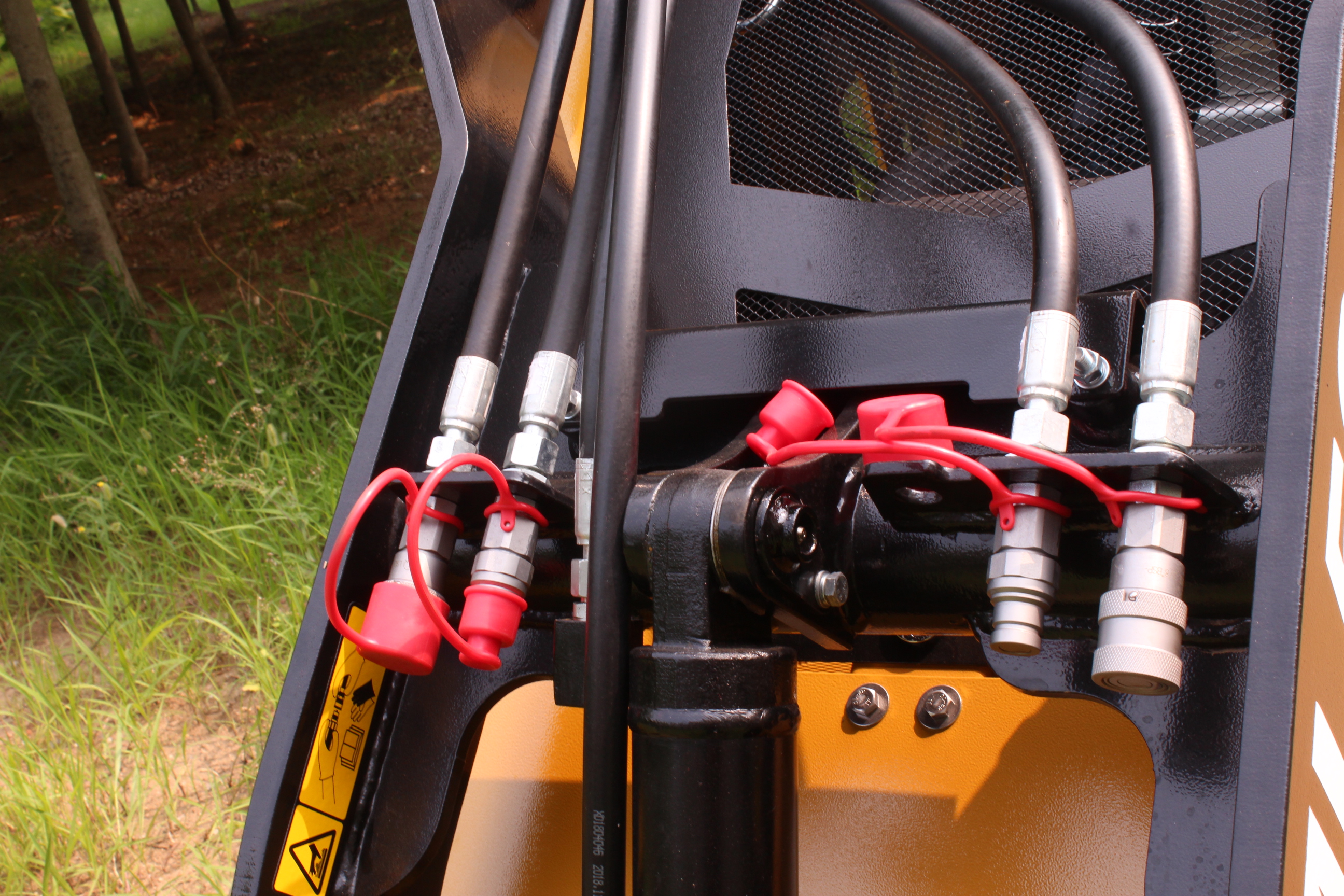

4: Equipped with two sets of assistive device control valves, it is convenient to expand auxiliary devices, and the flow rate can be adjusted.
5: The flow rate of auxiliary equipment can be adjusted between 0-45L/min
6: Adopt construction machinery testing methods and conduct strict thermal balance tests to ensure continuous, safe and reliable operation of the machine when the environment is 35°C.
7: Ergonomic optimization design is adopted, the climbing ability is calibrated at 16°, and the test test is 22°. The center of gravity of the whole machine is low, and the slope operation is safe and reliable.
8: Two sets of auxiliary equipment oil circuit and unloading circuit are equipped as standard, and more dual-function auxiliary equipment can be expanded without additional cost for auxiliary equipment control valve group.
Description
With a powerful Perkins diesel engine, the new ML525 model is a "little giant" that maneuvers easily in tight places and handles tough construction, agriculture and landscaping challenges with ease.
Machine
Operating weight 1.069 kg
Tip capacity 2.100 / 953 kg
Operating capacity 175 / 79.5 kg
Travel speed 3.5mph (5.6km/h)

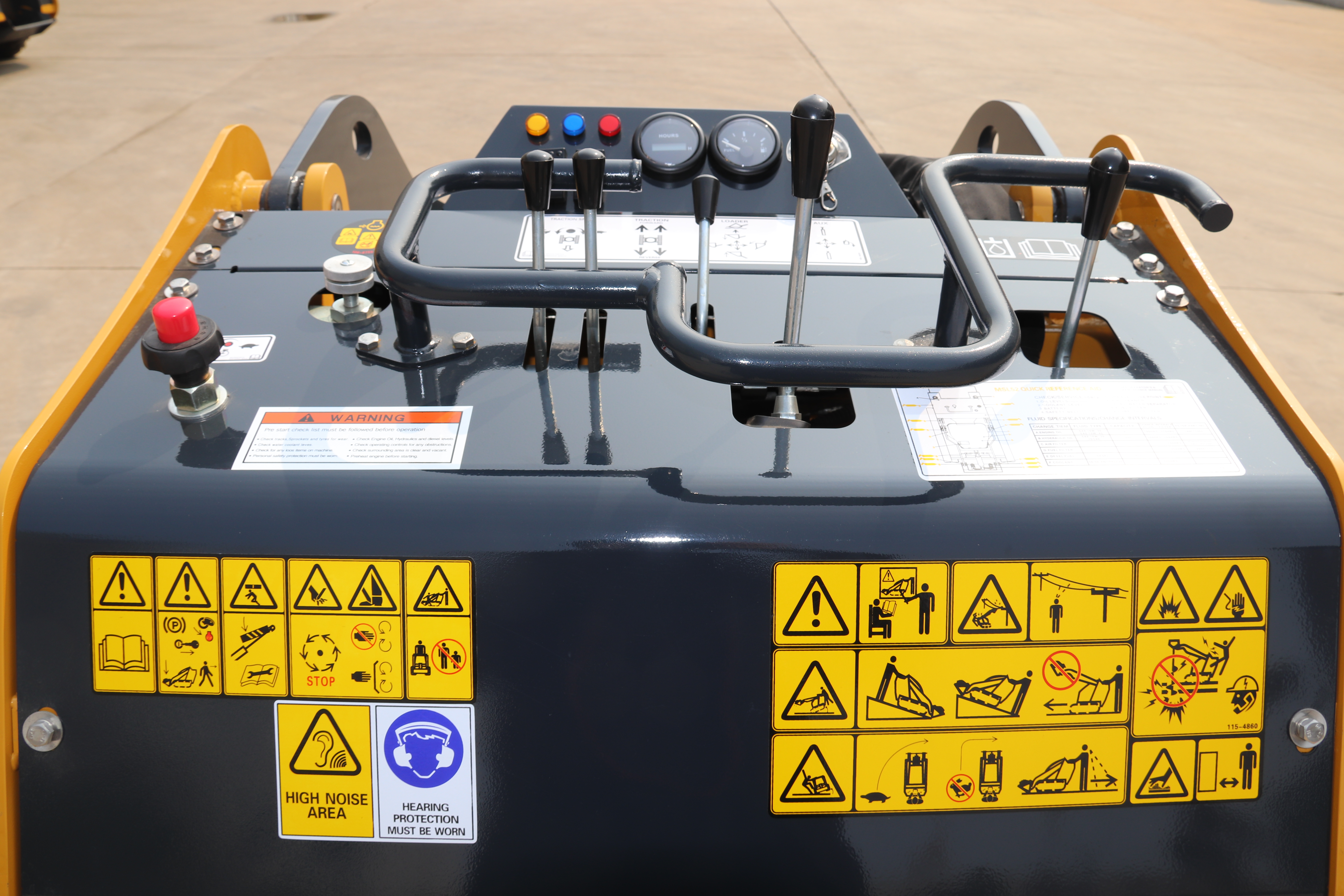

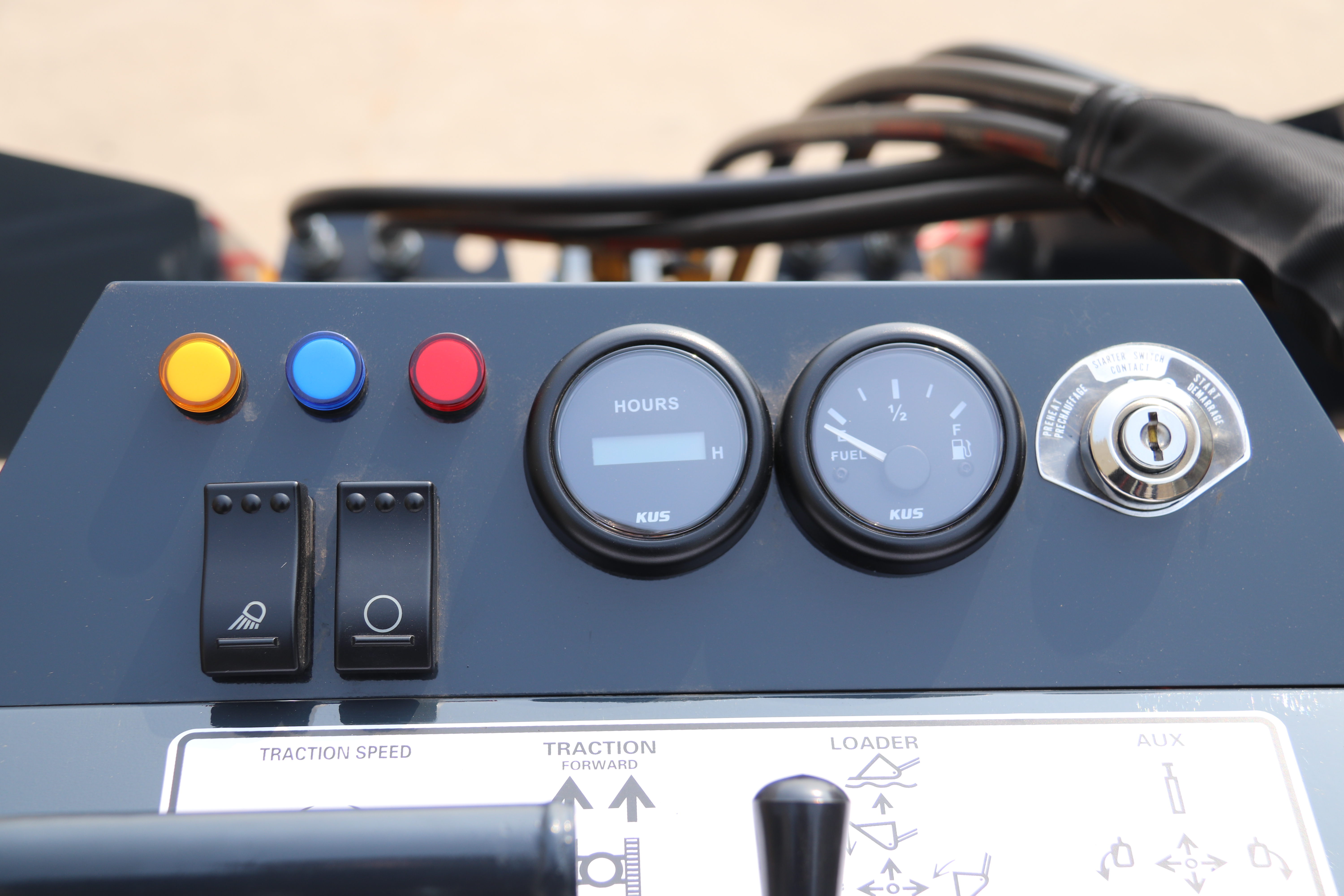

Operation
Steering and Drive:direction and speed controlled by single joystick
Lifting and tilt: Raise/lower/and dump controlled by a dual-axis joyctick.
Transmission type: crawler type
Hydraulic
Hydraulic flow 54.8 l/min
Working hydrostatic pressure 175 bar
Hydraulic tank capacity 53 l
Standard Buckets
Standard buckets – width / volume-
Standard bucket 1.060 mm / 0,36 m³
4 in 1 bucket 1.100 mm / 0,45 m³
Dimensions
Overall Operating Height 1,524mm
Overall Height 1,524 mm
Ground Clearance to Chassis 169 mm
Overall Length 2, 589 mm w/42" bucket
Overall Length 1,956 mm (without bucket)
Wheelbase 940 mm
Rollback at Ground 27°
Dump Angle 37°
Overall Width 1,040 mm
Bucket Width 1,060mm

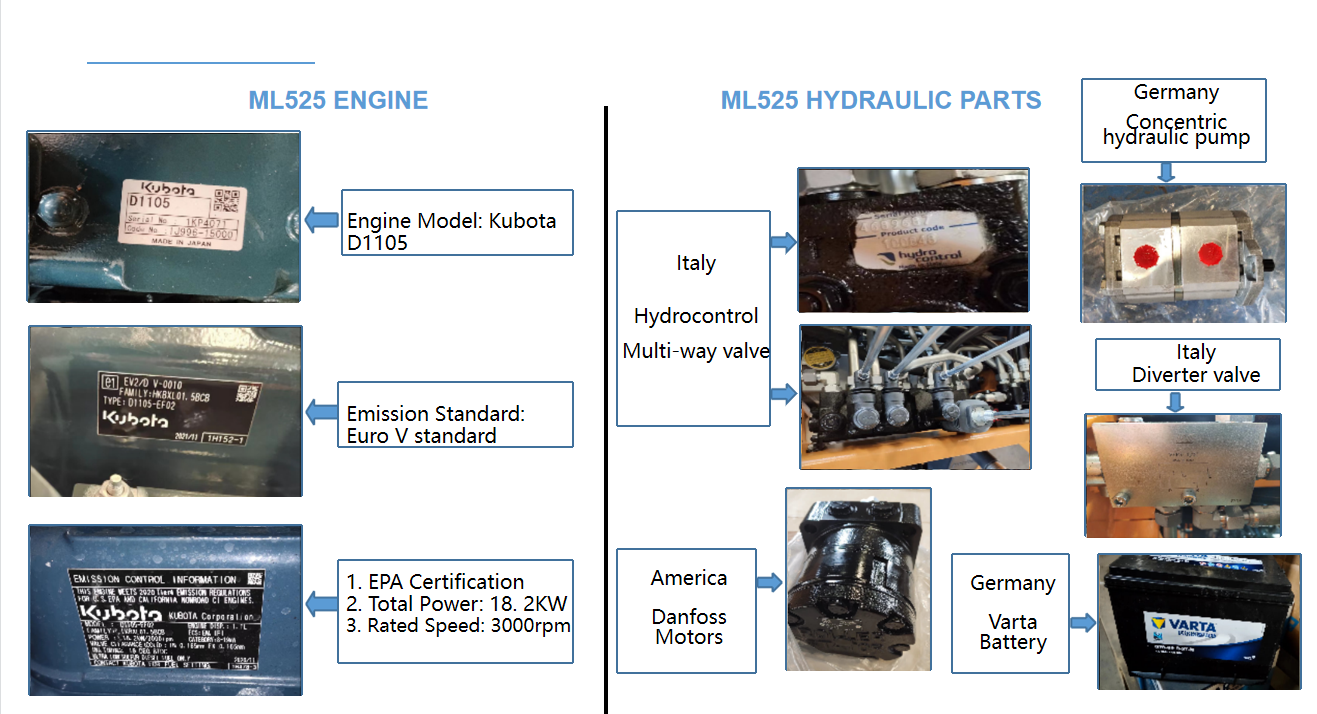

Engine
Manufacturer :KUBOTA
Diesel Engine type: 3 cyliner liquid-cooled
Power output max.25 hp /
Rated speed :3000 rpm/min
fuel capacity 9.0 gal / 47 L
Air cleaner :Heavy-duty dual element
Configurations

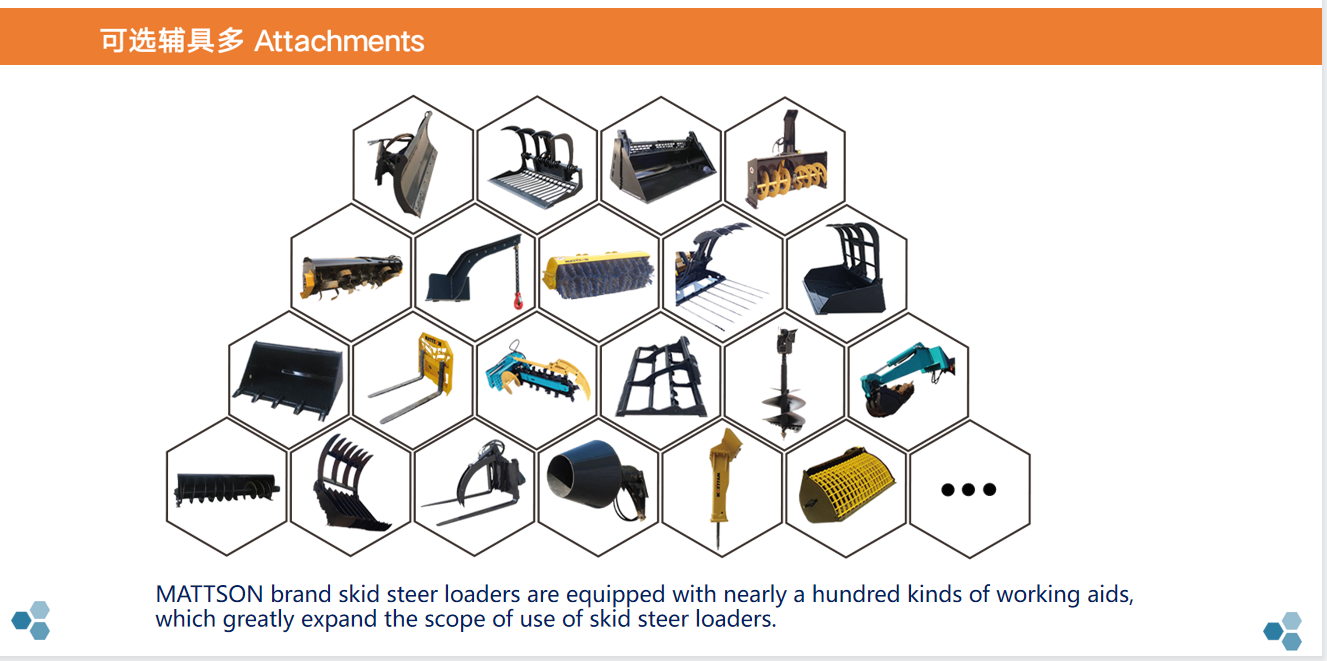

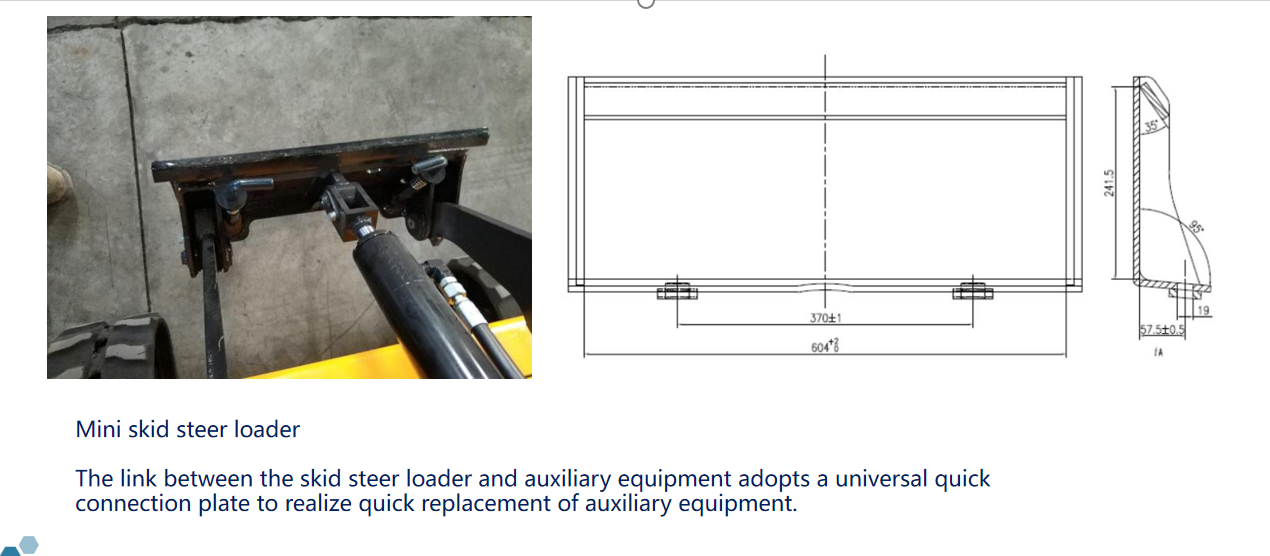

Attachments options

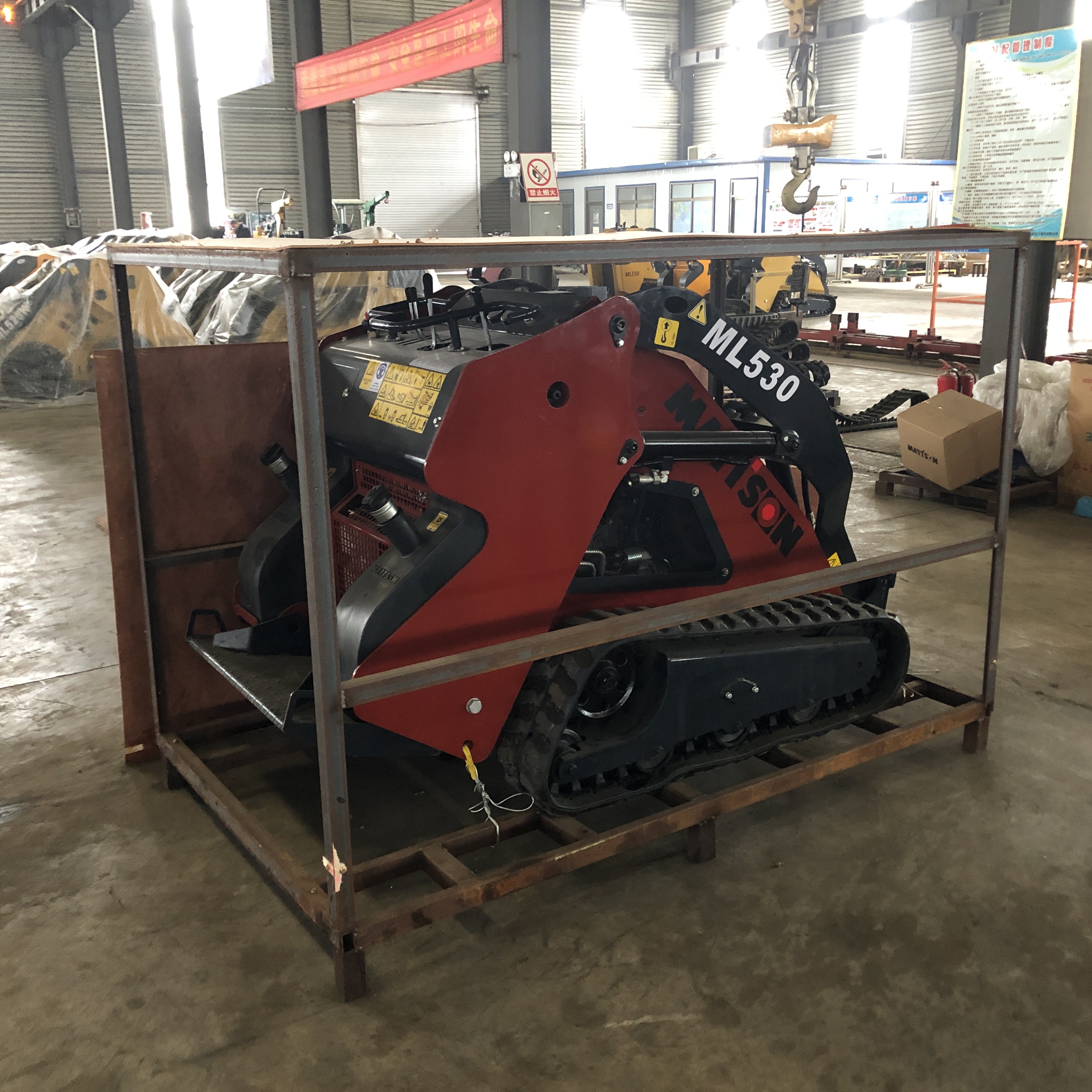

Packing by box ;LCL shipping or packing in container.
|
|
